產品規格

HDMI到CVBS信號轉換器，它會HDM視頻信號或音頻信號轉換為AV（CVBS）復合視頻信號和FL/ FR立

體聲音頻信號，和HDMI信號。同時支持DVI系統復合信號。幫助用戶轉換成HDMI視頻信號的高品質進

入正常CVBS信號（標準清晰度的480i，576i，），所以，可以在電視上播放，VHS錄像機，DVD刻錄

機等。支持NTSC和PAL兩個電視格式

產品特性

1. Hardware conversion, plug and play without any software driver

2. Compatible HDMI1.3

3. Support NTSC and PAL two standard TV formats

4. One HDMI input, one AV output, one stereo output

   Inputs: HDMI x 1

   Outputs: CVBS x 1; L / R x 1 HDMI x 1

5. HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz

6. compatible with DVI mode 800x600,1024x768,1280x720,1280x1024，1920x1080/@60hz

7. Support the HDCP protocol, support for HDMI 1.3

8. CVBS output: 480I, 576I

9. Audio output: L/R channels

10.HDMI OUTPUT: BYPASS HDMI

11.Dimensions：100mm(W)x115mm(D)x 25mm(H)

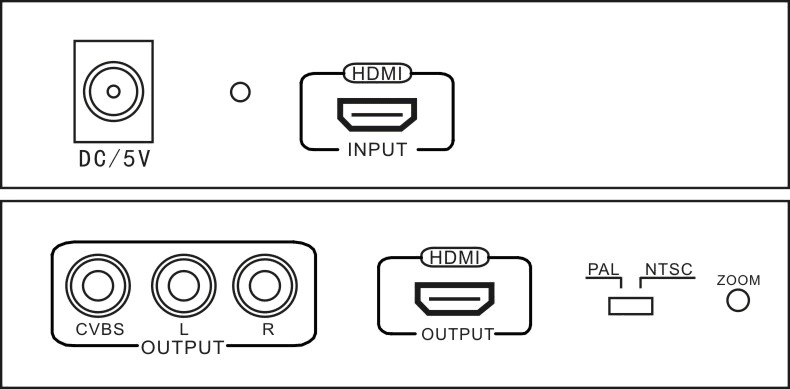

DC 5V: DC 5V input Port

POWER LED: Power indicator

HDMI Input: HDMI Input Port

A/V OUTPUT: Connect TV or video player which with;

             CVBS interface(NTSC / PAL available)

HDMI OUTPUT: Connect HD TV

PAL / NTSC: PAL and NTSC standard format selector switch

ZOOM Button: change the picture size on screen display
